Key Points in the Operational Process Analysis of Food Extrusion Puffing Machines

Extrusion technology has achieved rapid development and widespread application in the food industry.After processing by the snack food extrusion puffing machine, the physicochemical properties of the material undergo significant changes.High-molecular-weight substances such as proteins, starches, and cellulose present in food are broken down into smaller molecules under high temperature, high pressure, and strong shear forces, thereby improving food texture, increasing the content of soluble dietary fiber and human digestive absorption rates, and enhancing nutritional value.Furthermore, the extrusion puffing process can effectively control microorganisms and easily oxidizable substances in food raw materials, thereby extending the shelf life of food and ensuring consumer safety.

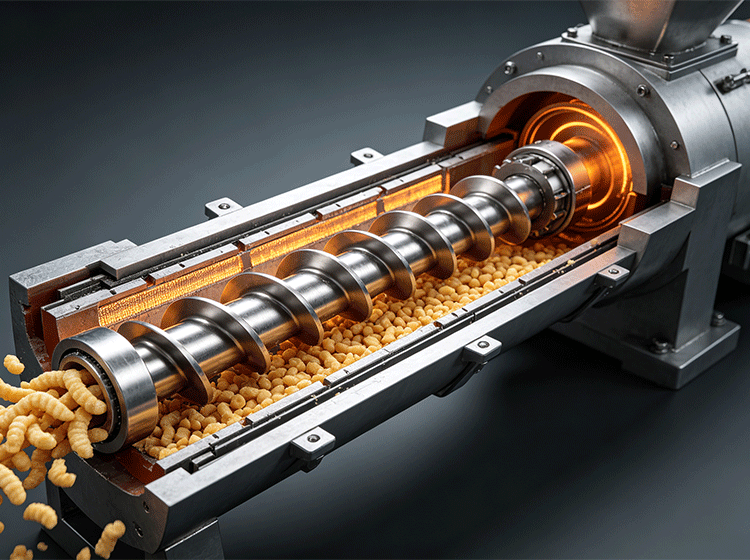

When materials with a certain moisture content enter the chamber of the snack food extrusion puffing machine, they are forced to advance under the helical propulsion of the screw. Under the combined effects of moisture, thermal energy, thrust, friction, and shear forces, the materials are formed while being subjected to heat and pressure in a high-pressure processing environment.During the extrusion process, the material is refined by shear and compression forces.Due to the high-temperature and high-pressure environment, the gas between the materials is expelled, the density continuously increases, the temperature rises steadily, and the extrusion force intensifies, resulting in the material inside the barrel being subjected to a high pressure of 3-8 MPa and a high temperature of 120-200°C.At this stage, the physicochemical properties of the material change, such as starch gelatinization and degradation, protein denaturation, partial degradation and refinement of cellulose, while also removing certain harmful factors and inactivating enzymes.When the material is forcibly extruded through the die opening of the snack food extrusion puffing machine, the pressure drops sharply to atmospheric pressure, causing the moisture to flash evaporate rapidly, the temperature to decrease, and the material's volume to expand instantaneously several times, thereby forming a light and porous puffed food product.

What conditions should be considered during implementation or selection?

First, it is essential to clarify the product type, raw material state, formulation direction, and expected finished product requirements.For projects involving extrusion, forming, drying, frying, conveying, seasoning, or packaging, the processing capacity and cycle time of each stage must be matched to avoid discrepancies between individual equipment capacity and the overall line requirements.

Secondly, the installation plan should be evaluated in conjunction with the workshop's spatial layout and utility conditions, including power supply, water supply, steam, or gas.Equipment configuration should also take into account long-term operational factors such as cleaning, maintenance, safety protection, spare parts supply, and operator training.Any process or equipment capabilities mentioned in this document are for reference only in the context of solution discussions and preliminary assessments.Specific model numbers, power ratings, production capacities, temperatures, and times shall be subject to the formal technical proposal and the results of trial runs or on-site verification.

Frequently Asked Questions

Can the equipment be determined directly based on the standard configuration?

Not recommended.Different raw materials, product structures, target production capacities, and downstream processes can affect the equipment configuration.It is more prudent to confirm the product and process conditions before proceeding with the configuration assessment.

How to obtain more targeted advice?

It is recommended to prepare product images or sample information, raw material and formulation guidelines, target production capacity, existing workshop conditions, and planned downstream equipment configurations.Dayi Machinery can further discuss the applicable process routes and equipment configuration options based on this.

This article is compiled based on the document "Analysis of the Operating Process of Food Extrusion Puffing Machine" provided by Dayi Machinery, with the aim of helping readers understand the relevant topics.For technical requirements related to specific projects, please refer to the actual product documentation and engineering confirmation results.
