The technical parameters of the puffed snack food production line involve process, equipment selection, or operational management issues in food processing and production equipment.The actual solution should be confirmed based on raw material characteristics, target product specifications, production scale, and on-site conditions, and should not be determined solely by single equipment parameters.

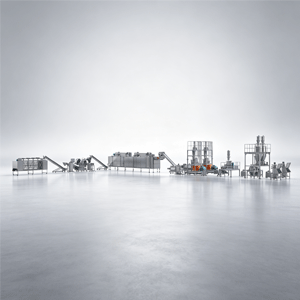

Key Technical Parameters of the Puffed Snack Food Production Line

The extrusion puffing machine for puffed snack foods is equipped with two pairs of intermeshing, co-rotating screws.They collectively serve to convey, frictionally extrude, and heat the material.Materials are forcibly conveyed based on the positive displacement principle, with minimal pressure backflow.

Therefore, this equipment effectively addresses the aforementioned issues of single-screw extruders and possesses strong conveying capacity.The extrusion puffing machine for puffed snack foods integrates functions such as compression, mixing, kneading, shearing, melting, sterilization, puffing, and shaping, completing the processing in an extremely short time.By changing the molds, the shape and size of the product can be infinitely adjusted.This extrusion puffing machine can produce a wide variety of foods on the production line.

It can produce snack foods, breakfast cereals, filled puffed foods, instant rice noodles, soup bases, bread slices, textured vegetable protein, candies, seasoning ingredients, pet food, fish and shrimp feed, and many other novel food products.

The core working principle of the extrusion puffing machine for puffed snack foods is to convert mechanical energy into thermal energy, primarily utilizing the heat generated by the machine's operation to extrude the food.A defining characteristic of puffed foods is their significant volume expansion.

The working principle of the extrusion puffing machine for puffed snack foods is as follows: the material is extruded to expel the gas within it, and then the material experiences backflow due to pressure, causing the pressure inside the machine to increase.The material is thoroughly mixed, extruded, heated, bonded, and gelatinized through friction between the barrel and the screw, resulting in the breakdown of its original structure.The extrusion puffing machine rapidly evaporates moisture, promotes the formation of a microporous structure in the material, and completes the puffing process after cooling.

What conditions should be considered during implementation or selection?

First, it is essential to clarify the product type, raw material state, formulation direction, and expected finished product requirements.For projects involving extrusion, forming, drying, frying, conveying, seasoning, or packaging, the processing capacity and cycle time of each stage must be matched to avoid discrepancies between individual equipment capacity and the overall line requirements.

Secondly, the installation plan should be evaluated in conjunction with the workshop's spatial layout and utility conditions, including power supply, water supply, steam, or gas.Equipment configuration should also take into account long-term operational factors such as cleaning, maintenance, safety protection, spare parts supply, and operator training.Any process or equipment capabilities mentioned in this document are for reference only in the context of solution discussions and preliminary assessments.Specific model numbers, power ratings, production capacities, temperatures, and times shall be subject to the formal technical proposal and the results of trial runs or on-site verification.

Frequently Asked Questions

Can the equipment be determined directly based on the standard configuration?

Not recommended.Different raw materials, product structures, target production capacities, and downstream processes can affect the equipment configuration.It is more prudent to confirm the product and process conditions before proceeding with the configuration assessment.

How to obtain more targeted advice?

It is recommended to prepare product images or sample information, raw material and formulation guidelines, target production capacity, existing workshop conditions, and planned downstream equipment configurations.Dayi Machinery can further discuss the applicable process routes and equipment configuration options based on this.

This article is compiled based on the "Technical Parameters of Puffed Snack Food Production Line" provided by Dayi Machinery, with the aim of helping readers understand the relevant topics.For technical requirements related to specific projects, please refer to the actual product documentation and engineering confirmation results.
