The structure of the twin-screw extrusion puffing machine involves process, selection, or operational management issues related to food processing and production equipment.The actual solution should be confirmed based on raw material characteristics, target product specifications, production scale, and on-site conditions, and should not be determined solely by single equipment parameters.

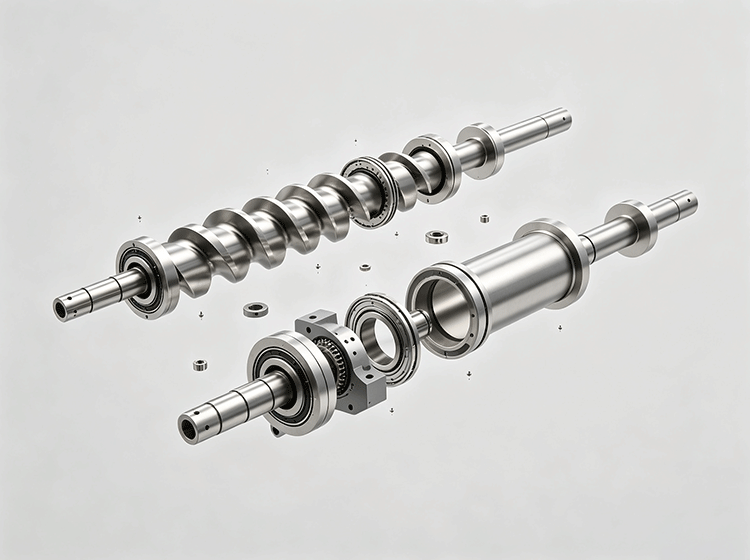

Key Structural Points of Twin-Screw Extrusion Puffing Machines

Introduction to the Series Twin-Screw Extrusion Puffing Machine:

It is mainly composed of a feeding system, an extrusion system, a cutting system, a heating system, a lubrication system, and a control system.2. The feeding system, main drive system, and cutting system of the extrusion puffing machine all adopt variable frequency control, providing strong power, smooth operation, and energy savings.3. Automatic lubrication and forced cooling are employed to ensure the safe operation of the extrusion puffing machine and extend its service life.4. The screw is made of alloy material and undergoes special processing treatment, providing high strength and wear resistance, which extends service life.5. Equipped with screw extrusion systems of different structures and length-to-diameter ratios according to different product requirements to meet process requirements.

Introduction to Special Model Extruders:

The screw adopts a modular structure and is made of special alloy, offering high strength and high wear resistance.The screw elements are designed based on the fully intermeshing model principle, manufactured through 3D design and CNC machining, featuring a smooth surface, high matching precision, and excellent self-cleaning performance.The screw mandrel uses an involute spline connection, facilitating the installation and removal of the screw.2. The barrel adopts a multi-section modular structure, with each section capable of independent temperature control, and equipped with heating and cooling channels;According to user requirements, steam heating, electric heating, and automatic temperature control can be adopted.3. The main motor of the extrusion puffing machine, the feeder, the cutter, and the liquid addition system all employ variable frequency speed regulation.The extrusion puffing machine system is controlled by a PLC and equipped with a touch-screen HMI terminal, providing clear and intuitive display.4. Primarily used for producing secondary-expanded semi-finished products (such as shell-shaped, shrimp chips, and composite 3D products), it can also produce puffed foods, pet food, aquaculture feed, corn flakes, and breakfast cereals.

Jinan Dayi Machinery Technology Co., Ltd. is located in the beautiful spring city of Jinan.The company has long been engaged in the research and development of food production line machinery and equipment, as well as production processes. Upholding standardized production processes and automated control concepts, we focus on developing stable and reliable production equipment.Our company's design team possesses extensive experience in equipment design, R&D, commissioning, and production. We also have professional on-site engineering technicians responsible for production and commissioning, enabling us to provide standardized design, production, and commissioning process services.

What conditions should be considered during implementation or selection?

First, it is essential to clarify the product type, raw material state, formulation direction, and expected finished product requirements.For projects involving extrusion, forming, drying, frying, conveying, seasoning, or packaging, the processing capacity and cycle time of each stage must be matched to avoid discrepancies between individual equipment capacity and the overall line requirements.

Secondly, the installation plan should be evaluated in conjunction with the workshop's spatial layout and utility conditions, including power supply, water supply, steam, or gas.Equipment configuration should also take into account long-term operational factors such as cleaning, maintenance, safety protection, spare parts supply, and operator training.Any process or equipment capabilities mentioned in this document are for reference only in the context of solution discussions and preliminary assessments.Specific model numbers, power ratings, production capacities, temperatures, and times shall be subject to the formal technical proposal and the results of trial runs or on-site verification.

Frequently Asked Questions

Can the equipment be determined directly based on the standard configuration?

Not recommended.Different raw materials, product structures, target production capacities, and downstream processes can affect the equipment configuration.It is more prudent to confirm the product and process conditions before proceeding with the configuration assessment.

How to obtain more targeted advice?

It is recommended to prepare product images or sample information, raw material and formulation guidelines, target production capacity, existing workshop conditions, and planned downstream equipment configurations.Dayi Machinery can further discuss the applicable process routes and equipment configuration options based on this.

This article is compiled based on the document "Structure of Twin-Screw Extrusion Puffing Machine" provided by Dayi Machinery, with the aim of helping readers understand the relevant topics.For technical requirements related to specific projects, please refer to the actual product documentation and engineering confirmation results.
